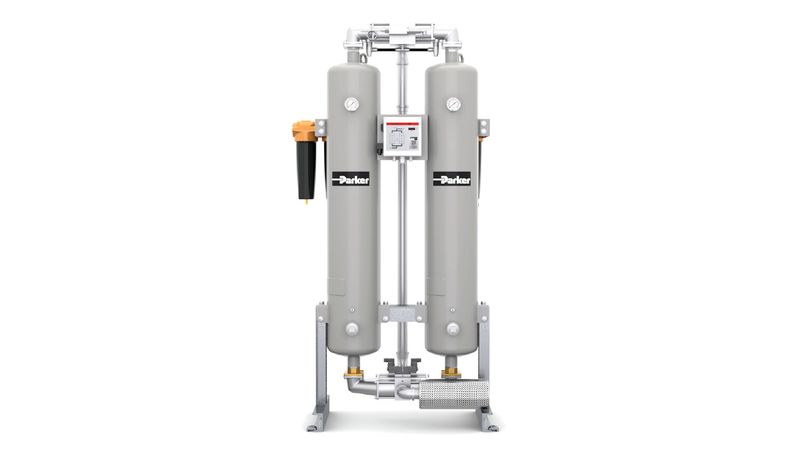

Adsorption Dryer Parker K-MT 10-95

1800 tot 15700 l/min - up to -70°C DDP

Product information

The Parker K-MT adsorption dryers dry compressed air to a dew point of -40°C or even -70°C. This makes the air immediately suitable for use in the food and pharmaceutical industries. With a flow rate of up to 15,700 litres per minute, these compact units are suitable for applications with low consumption.

Specifications

• Manufacturer: Parker
• Brand: Domnick Hunter
• Capacity: 1.8 to 15.7 m3/min
• Dew point: -25°C to -70°C
• Pressure range: 5 to 16 bar

Heatless Regeneration is energy efficient

Parker heatless regenerative dryers are based on PSA – Pressure Swing Adsorption – technology and therefore do not have the heat related complications of their heated counterparts. In addition, they do not require cooling air, which makes them more energy efficient.

Compressed air quality according to ISO8573-1

Depending on the selected dew point, the Parker domnick hunter K-MT 10-95 Series can achieve a compressed air quality of Class 2.1.2 according to ISO8573-1.

Capacity
